[openrtm-users 02898] Re: using dynamically created ports

[György Persa]

In addition to my experiment,
I could manage to activate the connection immediately by calling
"m_portAdmin.activatePorts();" directly with modified RTObject.h (made it
public). So, essentially I think I need something, which calls this
function indirectly
Thanks again,
György Persa

György Persa
*Software engineer*
Institute for Computer Science and Control
Hungarian Academy of Sciences
3D Internet-based Control and Communications Research Laboratory / 3DICC
*Project VirCA* (www.virca.hu)


On Tue, Aug 27, 2013 at 1:27 PM, György Persa <persa ＠ sztaki.hu> wrote:

> Hello everyone,
>
> in my project I would like to create service ports dynamically, runtime
> and connect them together. Is there any simple way to do this? Here's a
> short overview of the exact problem what I encountered, I hope you can help
> me!
>

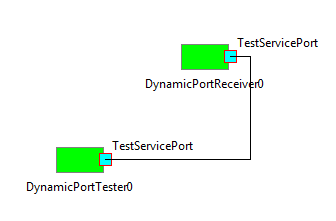

> For this purpose, I designed an experiment for two test components. The
> RTC#1 (DynamicPortTester in attachments) is instructing  RTC#2
> (DynamicPortRecevier) for creating a new port and register a provider for
> that.
> [image: Inline image 1]

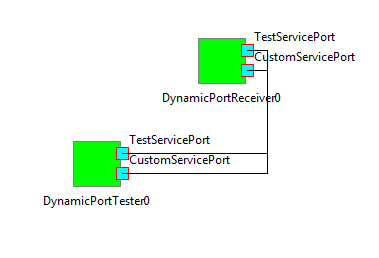

> After that, RTC#2 sets up a port as well and connect it to RTC#1's newly
> created port.
> [image: Inline image 2]
> My problem is that I'm unable to use the provided functions in RTC#2,
> because the service is inactive (_non_existent()).
> However, if I deactivate RTC#2 and activate it again, the service became
> active and usable.  Also, if I add the port when creating the component or
> in onInitialize(), it succeeds as well.
>
> Is there a way to get an active service without deactivate & activate it?
>
> Thanks in advance,
> György Persa
>
>
>
>
> György Persa
> *Software engineer*
> Institute for Computer Science and Control
> Hungarian Academy of Sciences
> 3D Internet-based Control and Communications Research Laboratory / 3DICC
> *Project VirCA* (www.virca.hu)
>
>
