[openrtm-users 01191] Problem shutting down component when more then one connection exists

[Steffen Wittmeier]

Hi,

I receive a seg-fault when calling cleanupComponents(). The problem only

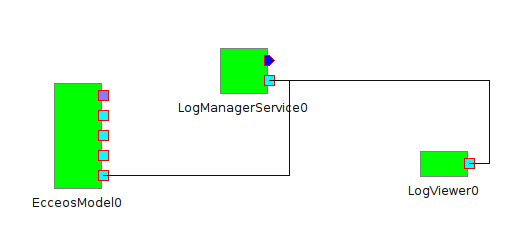

occurs in the following setups (see also attached screenshot).

If component A (here LogViewer) is destructed by calling exit() on the
component and cleanupComponents() on the manager (somehow
cleanupComponent(rtc) does not call the destructor?) and this component
A is connected to a port of component B (LogManager) which is turn
connected to a component C (EcceosModel) I receive the seg-fault.

In contrast, if I remove the connection between component B and C and
call exit() on component A, the application exits normally.

I attached a backtrace of the seg-fault. You can see that I am calling
cleanupComponents() that leads to the destructor call of the PortProfile
which causes the error.

Is this some internal error where you could provide a fix for? As I
receive the same error when I exit the component A in the
RTSystemEditor, it seems that it is not a problem of the component
deletion within my code.

Any help is appreciated...


Many thanks in advance,
Steffen Wittmeier


#0  0x00007ffff2129f3f in omni::releaseObjRef(omniObjRef*) () from
/usr/lib/libomniORB4.so.1
#1  0x00007ffff74aa18b in RTC::PortProfile::~PortProfile() () from
/usr/local/lib/libRTC-1.0.0.so.0
#2  0x00007ffff750e6e0 in RTC::PortBase::~PortBase() () from
/usr/local/lib/libRTC-1.0.0.so.0
#3  0x00007ffff74ef6f6 in RTC::CorbaPort::~CorbaPort() () from
/usr/local/lib/libRTC-1.0.0.so.0
#4  0x00007ffff5ec4f1c in ~LogViewer (this=0xbcdfb0, __in_chrg=<value
optimized out>, __vtt_parm=<value optimized out>)
     at
/home/wittmeis/projects/eccerobot/workspaces/workspaceC++/gui ＠ src/src/er/gui/util/log/LogViewer.cpp:111
#5  0x00007ffff5ec9d6f in RTC::Delete<er::gui::util::log::LogViewer>
(rtc=0xbce080) at /usr/local/include/rtm/Factory.h:94
#6  0x00007ffff747e688 in RTC::FactoryCXX::destroy(RTC::RTObject_impl*)
() from /usr/local/lib/libRTC-1.0.0.so.0
#7  0x00007ffff748e027 in
RTC::Manager::deleteComponent(RTC::RTObject_impl*) () from
/usr/local/lib/libRTC-1.0.0.so.0
#8  0x00007ffff748e8a4 in RTC::Manager::cleanupComponents() () from
/usr/local/lib/libRTC-1.0.0.so.0
#9  0x00007ffff1a05e77 in coil::Timer::invoke() () from
/usr/local/stow/OpenRTM-aist-1.0.0/lib/libcoil.so.0
#10 0x00007ffff1a05ef8 in coil::Timer::svc() () from
/usr/local/stow/OpenRTM-aist-1.0.0/lib/libcoil.so.0
#11 0x00007ffff1a0a24a in coil::Task::svc_run(void*) () from
/usr/local/stow/OpenRTM-aist-1.0.0/lib/libcoil.so.0
#12 0x00007ffff240ca04 in start_thread (arg=<value optimized out>) at
pthread_create.c:300
#13 0x00007ffff270180d in clone () at
../sysdeps/unix/sysv/linux/x86_64/clone.S:112



--
Steffen Wittmeier
Lehrstuhl für Informatik VI
Technische Universität München
Boltzmannstraße 3, 85748 Garching

Telefon : +89 289-18100
Telefax : +89 289-18107
E-Mail  : steffen.wittmeier ＠ in.tum.de
Internet: http://www6.in.tum.de/
