RTC::InPortCorbaCdrConsumer Class Reference

InPortCorbaCdrConsumer class. More...

#include <InPortCorbaCdrConsumer.h>

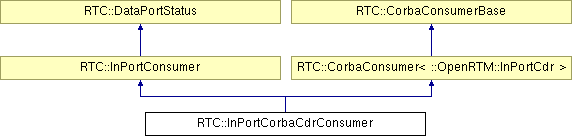

Inheritance diagram for RTC::InPortCorbaCdrConsumer:

List of all members.

Public Member Functions
DATAPORTSTATUS_ENUM	InPortCorbaCdrConsumer (void)
	Constructor.
virtual	~InPortCorbaCdrConsumer (void)
	Destructor.
virtual void	init (coil::Properties &prop)
	Initializing configuration.
virtual ReturnCode	put (const cdrMemoryStream &data)
	Send data to the destination port.
virtual void	publishInterfaceProfile (SDOPackage::NVList &properties)
	Publish InterfaceProfile information.
virtual bool	subscribeInterface (const SDOPackage::NVList &properties)
	Subscribe to the data sending notification.
virtual void	unsubscribeInterface (const SDOPackage::NVList &properties)
	Unsubscribe the data send notification.

---

Detailed Description

InPortCorbaCdrConsumer class.

The InPort consumer class which uses the OpenRTM::InPortCdr interface in CORBA for data transfer and realizes a push-type dataflow.

Since:

0.4.0

---

Constructor & Destructor Documentation

DATAPORTSTATUS_ENUM RTC::InPortCorbaCdrConsumer::InPortCorbaCdrConsumer

(

void

)

Constructor.

Constructor

Parameters:

buffer

The buffer object that is attached to this Consumer

virtual RTC::InPortCorbaCdrConsumer::~InPortCorbaCdrConsumer

(

void

)

[virtual]

Destructor.

Destructor

---

Member Function Documentation

virtual void RTC::InPortCorbaCdrConsumer::init

(

coil::Properties &

prop

)

[virtual]

Initializing configuration.

This operation would be called to configure in initialization. In the concrete class, configuration should be performed getting appropriate information from the given Properties data. This function might be called right after instantiation and connection sequence respectivly. Therefore, this function should be implemented assuming multiple call.

Parameters:

prop

Configuration information

Implements RTC::InPortConsumer.

virtual void RTC::InPortCorbaCdrConsumer::publishInterfaceProfile

(

SDOPackage::NVList &

properties

)

[virtual]

Publish InterfaceProfile information.

Publish interfaceProfile information. Check the dataport.interface_type value of the NameValue object specified by an argument in property information and get information only when the interface type of the specified port is matched.

Parameters:

properties

Properties to get InterfaceProfile information

Implements RTC::InPortConsumer.

virtual ReturnCode RTC::InPortCorbaCdrConsumer::put

(

const cdrMemoryStream &

data

)

[virtual]

Send data to the destination port.

Pure virtual function to send data to the destination port.

This function might the following return codes

• PORT_OK: Normal return
• PORT_ERROR: Error occurred in data transfer process
• SEND_FULL: Buffer full although OutPort tried to send data
• SEND_TIMEOUT: Timeout although OutPort tried to send data
• UNKNOWN_ERROR: Unknown error

Implements RTC::InPortConsumer.

virtual bool RTC::InPortCorbaCdrConsumer::subscribeInterface

(

const SDOPackage::NVList &

properties

)

[virtual]

Subscribe to the data sending notification.

Subscribe to the data sending notification based on specified property information.

Parameters:

properties

Information for subscription

Returns:

Subscription result (Successful:true, Failed:false)

Implements RTC::InPortConsumer.

virtual void RTC::InPortCorbaCdrConsumer::unsubscribeInterface

(

const SDOPackage::NVList &

properties

)

[virtual]

Unsubscribe the data send notification.

Unsubscribe the data send notification.

Parameters:

properties

Information for unsubscription

Implements RTC::InPortConsumer.
