RTC::OutPortConnector Class Reference

OutPortConnector base class. More...

#include <OutPortConnector.h>

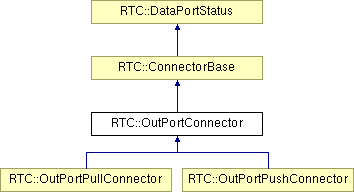

Inheritance diagram for RTC::OutPortConnector:

List of all members.

Public Member Functions
DATAPORTSTATUS_ENUM	OutPortConnector (ConnectorInfo &info)
	Constructor.
virtual	~OutPortConnector ()
	Destructor.
const ConnectorInfo &	profile ()
	Getting Profile.
const char *	id ()
	Getting Connector ID.
const char *	name ()
	Getting Connector name.
virtual ReturnCode	disconnect ()=0
	Disconnect connection.
virtual CdrBufferBase *	getBuffer ()=0
	Getting Buffer.
virtual ReturnCode	write (const cdrMemoryStream &data)=0
	Destructor.
virtual void	setEndian (const bool endian_type)
	Setting an endian type.
virtual bool	isLittleEndian ()
	return it whether endian setting.
template<class DataType >
ReturnCode	write (const DataType &data)
	The conversion template of the data type.
Protected Attributes
Logger	rtclog
	Logger stream.
ConnectorInfo	m_profile
	PortProfile of the Port.
bool	m_littleEndian
	Connected Endian.
cdrMemoryStream	m_cdr
	CDR stream.

---

Detailed Description

OutPortConnector base class.

The base class to derive subclasses for OutPort's Push/Pull Connectors

Since:

1.0.0

---

Constructor & Destructor Documentation

DATAPORTSTATUS_ENUM RTC::OutPortConnector::OutPortConnector

(

ConnectorInfo &

info

)

Constructor.

virtual RTC::OutPortConnector::~OutPortConnector

(

)

[virtual]

Destructor.

---

Member Function Documentation

virtual ReturnCode RTC::OutPortConnector::disconnect

(

)

[pure virtual]

Disconnect connection.

This operation disconnect this connection

Implements RTC::ConnectorBase.

Implemented in RTC::OutPortPullConnector, and RTC::OutPortPushConnector.

virtual CdrBufferBase* RTC::OutPortConnector::getBuffer

(

)

[pure virtual]

Getting Buffer.

This operation returns this connector's buffer

Implements RTC::ConnectorBase.

Implemented in RTC::OutPortPullConnector, and RTC::OutPortPushConnector.

const char* RTC::OutPortConnector::id

(

)

[virtual]

Getting Connector ID.

This operation returns Connector ID

Implements RTC::ConnectorBase.

virtual bool RTC::OutPortConnector::isLittleEndian

(

)

[virtual]

return it whether endian setting.

Returns:

Return true in the case of "little", false in "big" than it.

Referenced by write().

const char* RTC::OutPortConnector::name

(

)

[virtual]

Getting Connector name.

This operation returns Connector name

Implements RTC::ConnectorBase.

const ConnectorInfo& RTC::OutPortConnector::profile

(

)

[virtual]

Getting Profile.

This operation returns Connector Profile

Implements RTC::ConnectorBase.

virtual void RTC::OutPortConnector::setEndian

(

const bool

endian_type

)

[virtual]

Setting an endian type.

This operation set this connector's endian type

template<class DataType >

ReturnCode RTC::OutPortConnector::write

(

const DataType &

data

)

[inline]

The conversion template of the data type.

This is convert it from Timed* into CdrStream.

References isLittleEndian(), m_cdr, RTC_TRACE, and write().

virtual ReturnCode RTC::OutPortConnector::write

(

const cdrMemoryStream &

data

)

[pure virtual]

Destructor.

The write function to write data from OutPort to Buffer

Implemented in RTC::OutPortPullConnector, and RTC::OutPortPushConnector.

Referenced by write().

---

Member Data Documentation

cdrMemoryStream RTC::OutPortConnector::m_cdr [protected]

CDR stream.

Referenced by write().

bool RTC::OutPortConnector::m_littleEndian [protected]

Connected Endian.

ConnectorInfo RTC::OutPortConnector::m_profile [protected]

PortProfile of the Port.

Logger RTC::OutPortConnector::rtclog [protected]

Logger stream.
