Overview

By starting ImageSubtraction component, the background image is extracted from the input image, the foreground image part is output as a mask image and the background image is output. Used with OpenCVCamera and CameraViewer component. (Note that this component currently does not work properly in a Windows environment, so please use it in Linux (Ubuntu 18.04) environment.)

Start screen

How to use

ImageSubtraction is a component for extracting the background image from the input image. Here, it is used together with OpenCVCamera for capturing images from USB Camera and CameraViewer component for displaying processed images.

• Procedure (The following is the procedure on Ubuntu 18.04.)
  • Open a new terminal.
  • Install the sample code according to the above [[OpenCV sample code build procedure for Linux>//node/6974].
  • Start OpenRTP according to OpenRTP and start RTSystemEditor, and display RTC in Name Service View. Open a new SystemEditor. See RTSystemEditor details on how to use RTSystemEditor
  • Open a new terminal.
  • Create rtc1.conf, rtc2.conf, rtc3.conf by the following steps.  $ cp rtc.conf rtc1.conf  $ cp rtc.conf rtc2.conf  $ cp rtc.conf rtc3.conf
  • Open an editor software to edit each "rtc?.conf" and add the following line to the end of the each files.  naming.formats:% h.host_cxt/CameraViewer?.rtc  (Where "?" Is the number "1", "2", "3")
  • Start a new terminal and input the following commands

     $ cd ImageProcessing/opencv/bin
     $ ./CameraViewerComp

  • Repeat to start a new terminal and execute CameraViewerComp with adding "-f rtc1.conf", "-f rtc2.conf", and "-f rtc3.conf" option. Then, you will see 4 CameraViewer screen.
  • Start another terminal and start OpenCVCamera component by inputing following commands.

     $ cd ImageProcessing/opencv/bin
     $ ./OpenCVCameraComp

  • Start Terminal again to launch ImageSubtraction component.

     $ cd ImageProcessing/opencv/bin
     $ ./ImageSubtractionComp

  • Click [>] in the Name Service view on the RTSystemEditor screen and confirm that the components "CameraView0", "CameraViewer1", "CameraViewer2", "CameraViewe3", "OpenCVCamera", and "ImageSubtraction" are displayed.
  • Click [Open New System Editor] button at the top of RTSystemEditor to open a new System Editor and display [System Dialgram] newly.
  • Drag and drop the above five components onto the System Diagram.

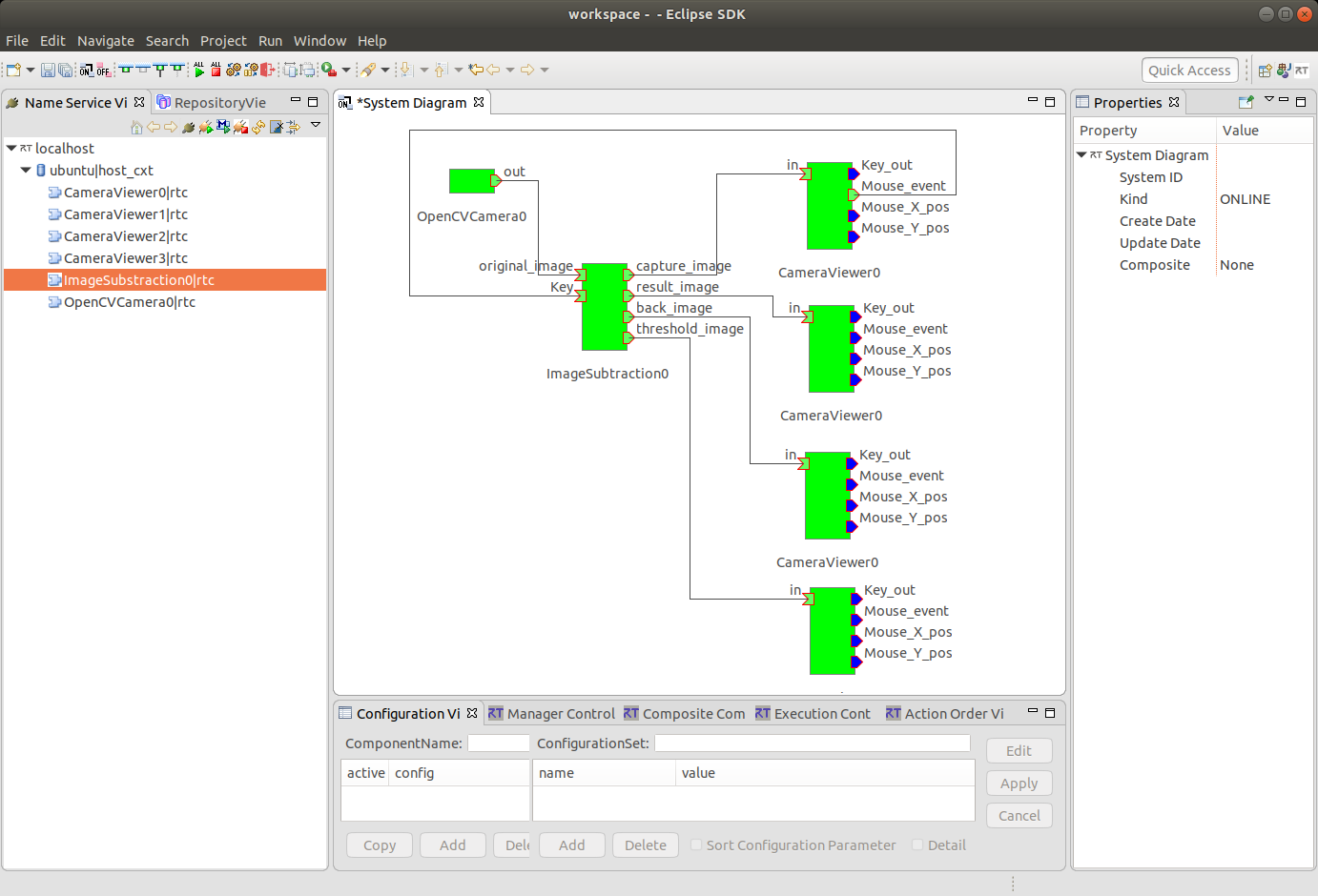

  • Connect the ports of each component as shown below.

    Execution example of ImageSubtraction component

• Right-click on any component and select [Activate Systems].
• Display the CameraViewer screens by adjusting the positions of the windows like the following.

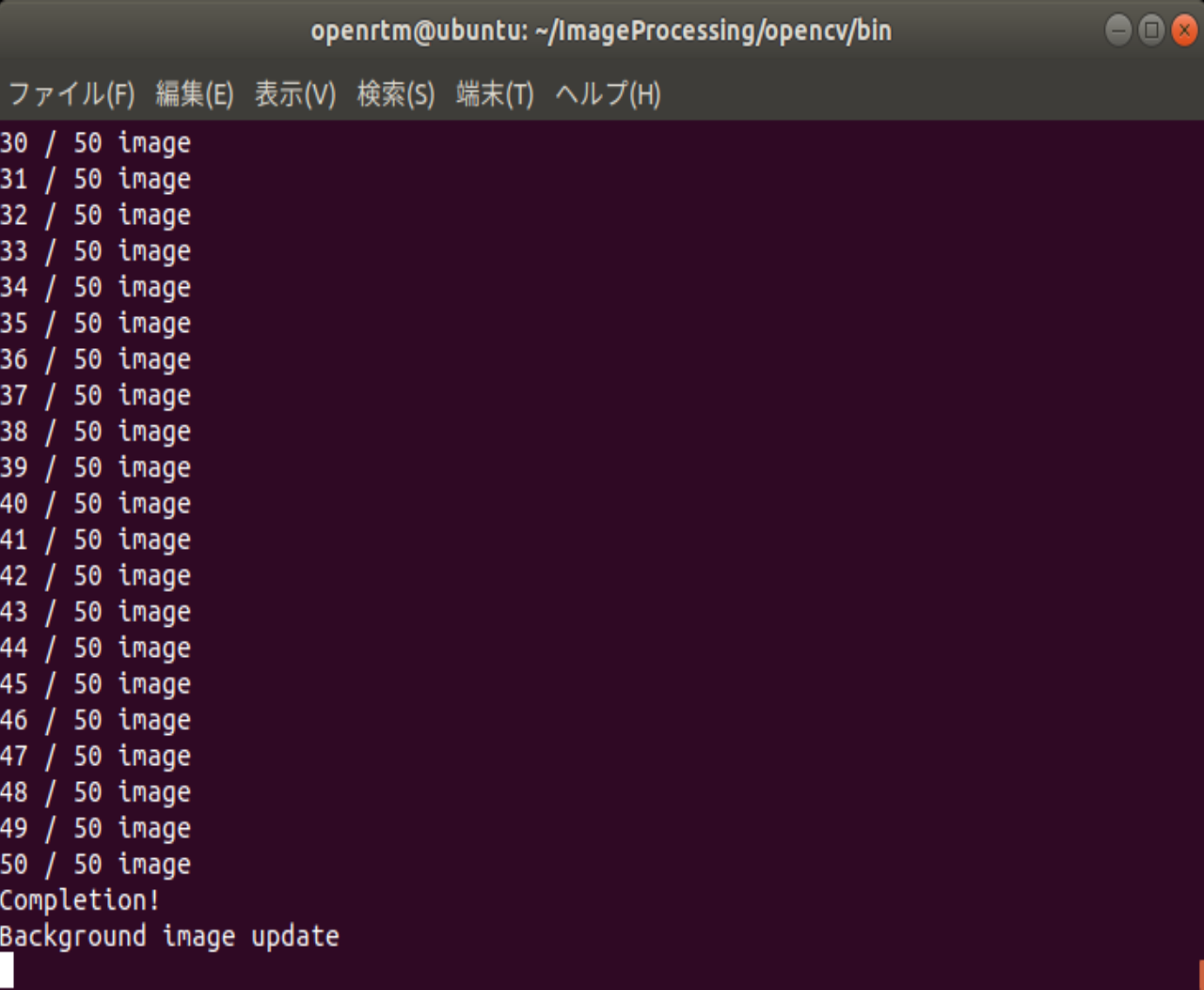

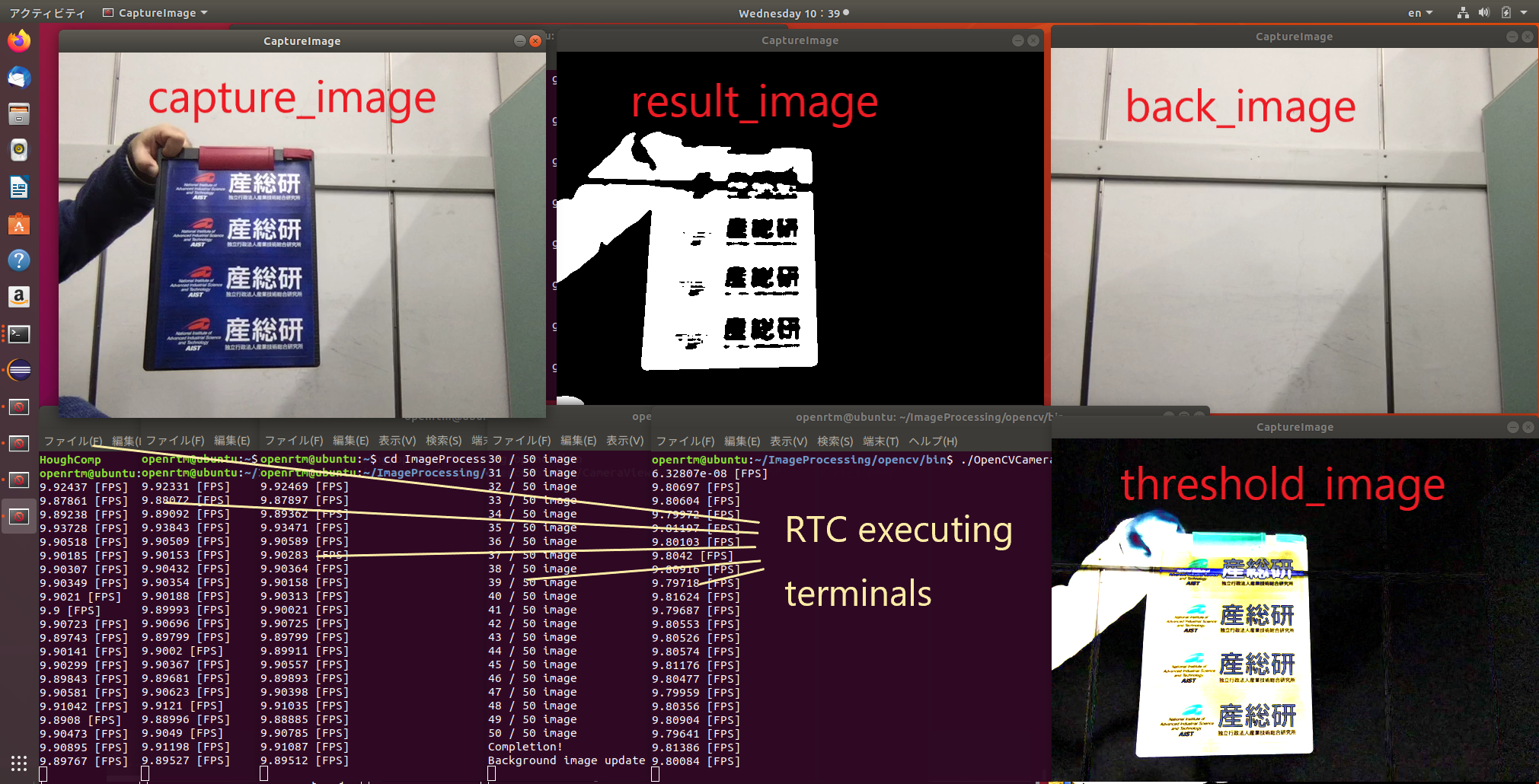

  ImageSubtraction Outputs

• When you move the mouse out of the "capture_image" window, the background image is captured at that timing and displayed it on the back_image. Check what happens to the other screens as well.   The following can be set as configuration parameters.
