This sample is included with C ++, Python and Java versions of OpenRTM-aist.
Overview
Sample of how to use InPort and OutPort. Start the ConsoleIn and ConsoleOut components. When the ports are connected, the numbers entered on the ConsoleIn side are displayed on the ConsoleOut side. Ports can be connected by executing rtshell commands in addition to using RTSystemEditor.

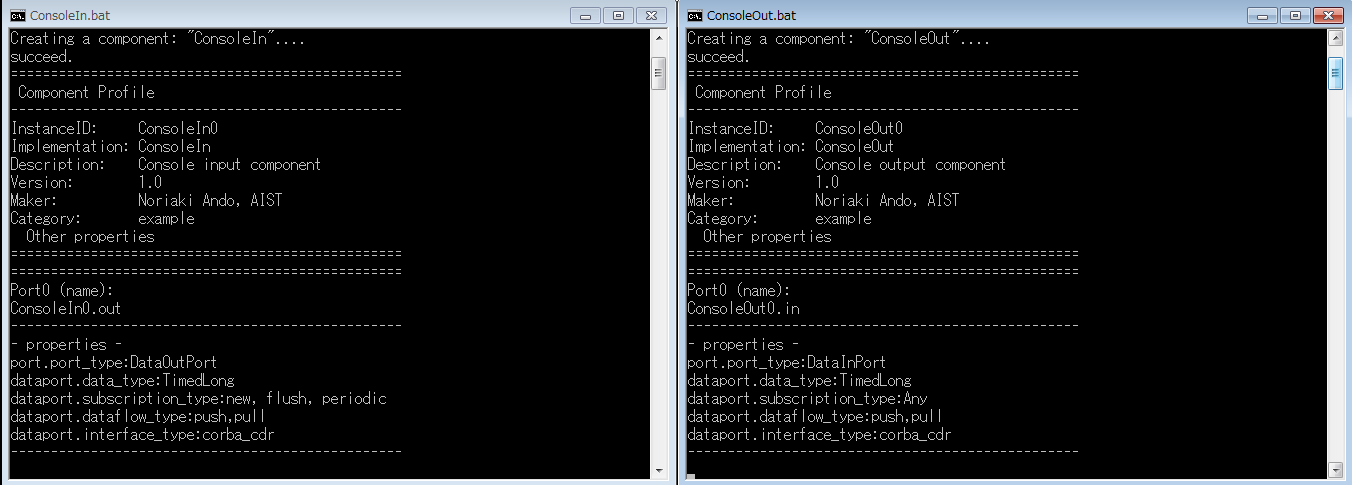

Start screen

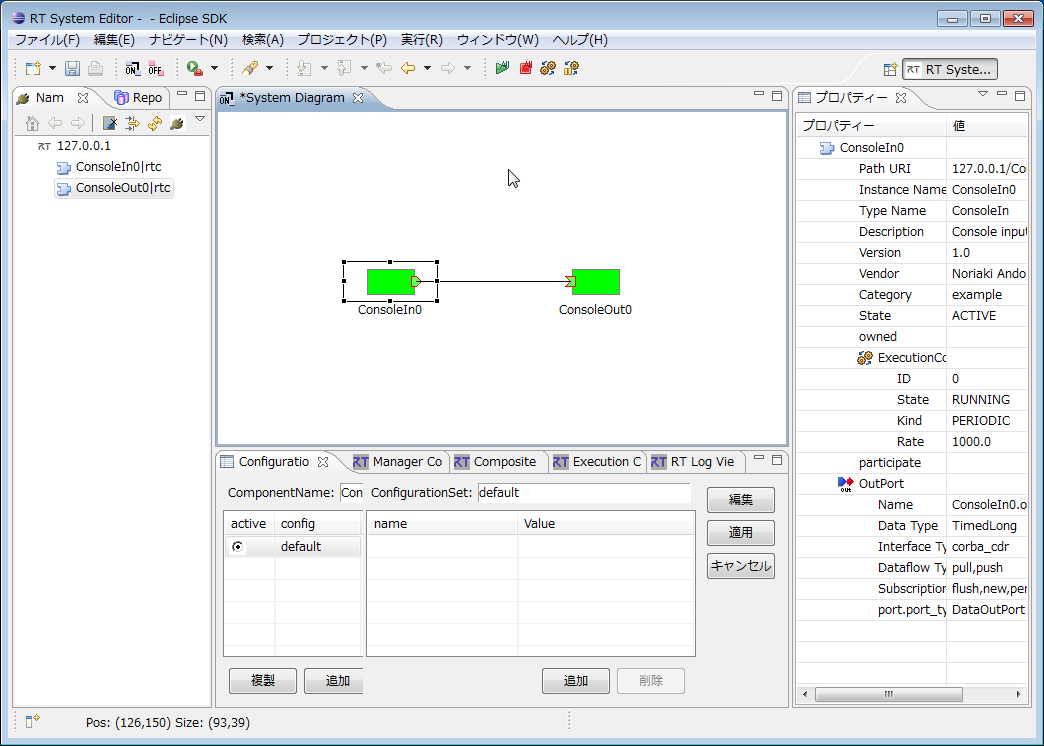

SimpleIO execution example (RTSystemEditor connection screen)
Execution example of ConsoleIn and ConsoleOut components
How to use
The sample of SimpleIO is a sample that sends the number input by ConsoleIn from the data port to ConsoleOut and displays the same number on ConsoleOut side. Enter a number from the ConsoleIn screen. Then the number entered in ConsoleOut will be output.
Start OpenRTP and open RTSystemEditor. See RTSystemEditor for details on how to use RTSystemEditor
Start both ConsoleIn and ConsoleOut components. Component startup differs depending on the OS and OpenRTM-aist language. Start by referring to the table below.
For Windows
For Linux
ConsoleIn component
ConsoleOut component
ConsoleIn component
ConsoleOut component
C++ version
ConsoleIn.bat
ConsoleOut.bat
ConsoleInComp
ConsoleOutComp
Python version
ConsoleIn.bat
ConsoleOut.bat
ConsoleIn.py
ConsoleOut.py
Java version
ConsoleIn.bat
ConsoleOut.bat
ConsoleIn.sh
ConsoleOut.sh
Drag both components onto the SystemEditor as both components appear in the Name Service View of RTSystemEditor.
Connect the ports of both components. (Refer to SimpleIO execution example above)
Right-click either component and select [Activate Systems].
The "Please input number:" prompt appears on the ConsoleIn screen. Enter the number.
